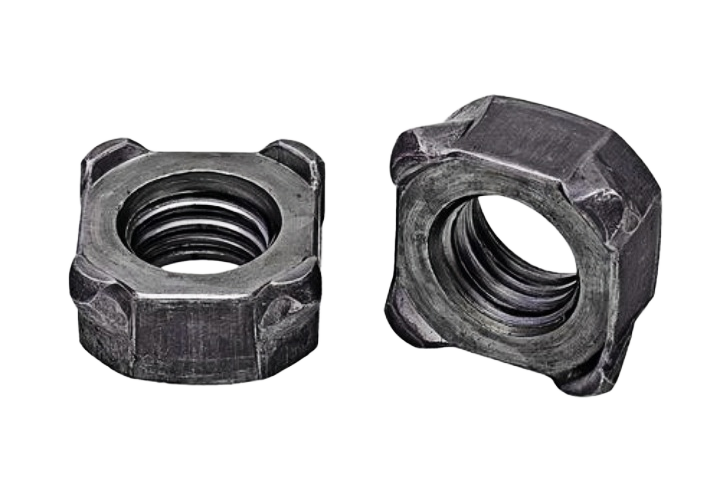

Weld Nut Size Chart – DIN 928, DIN 929 & ISO 21670 Dimensions

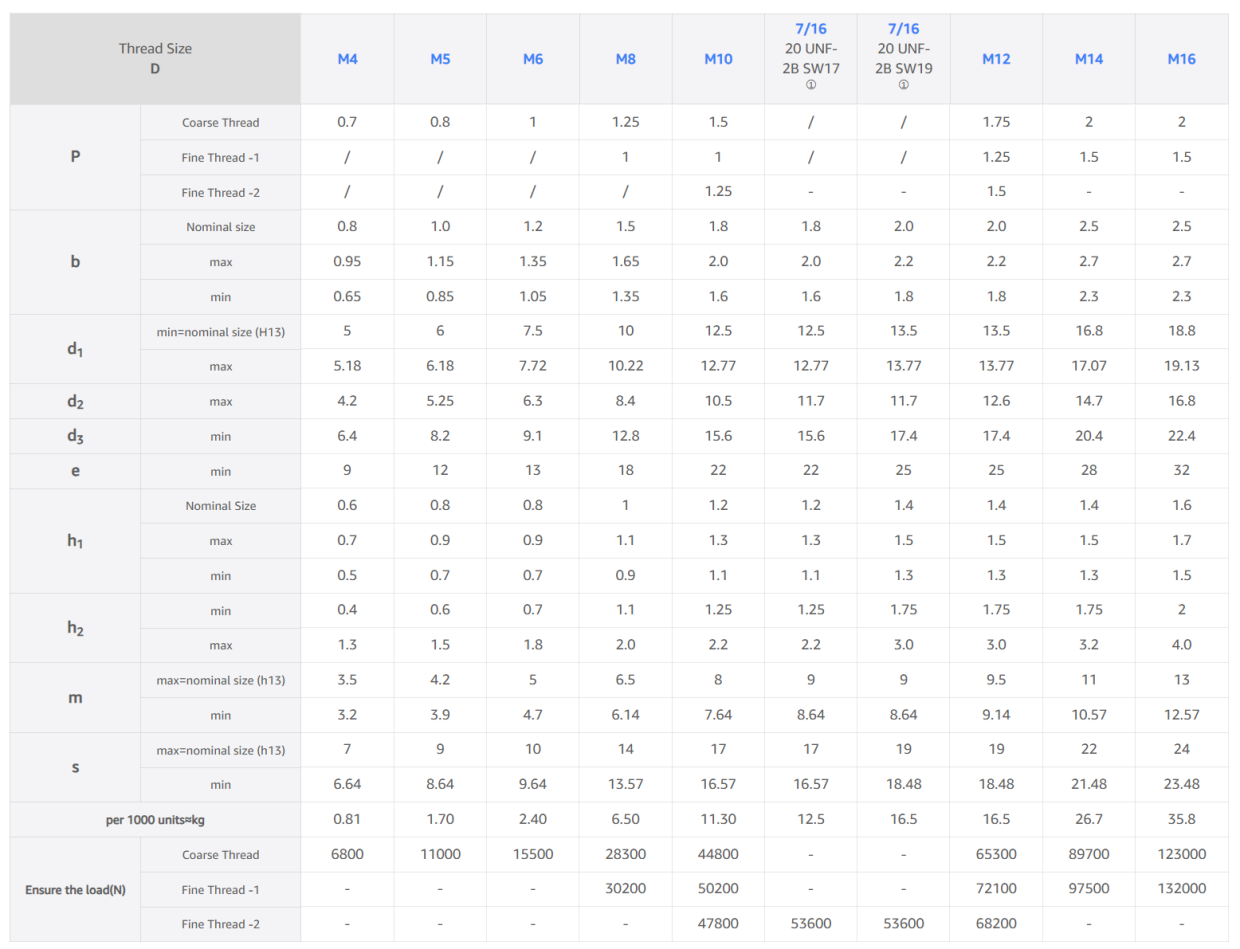

Square Weld Nut Size Chart – DIN 928  Metric Dimensions

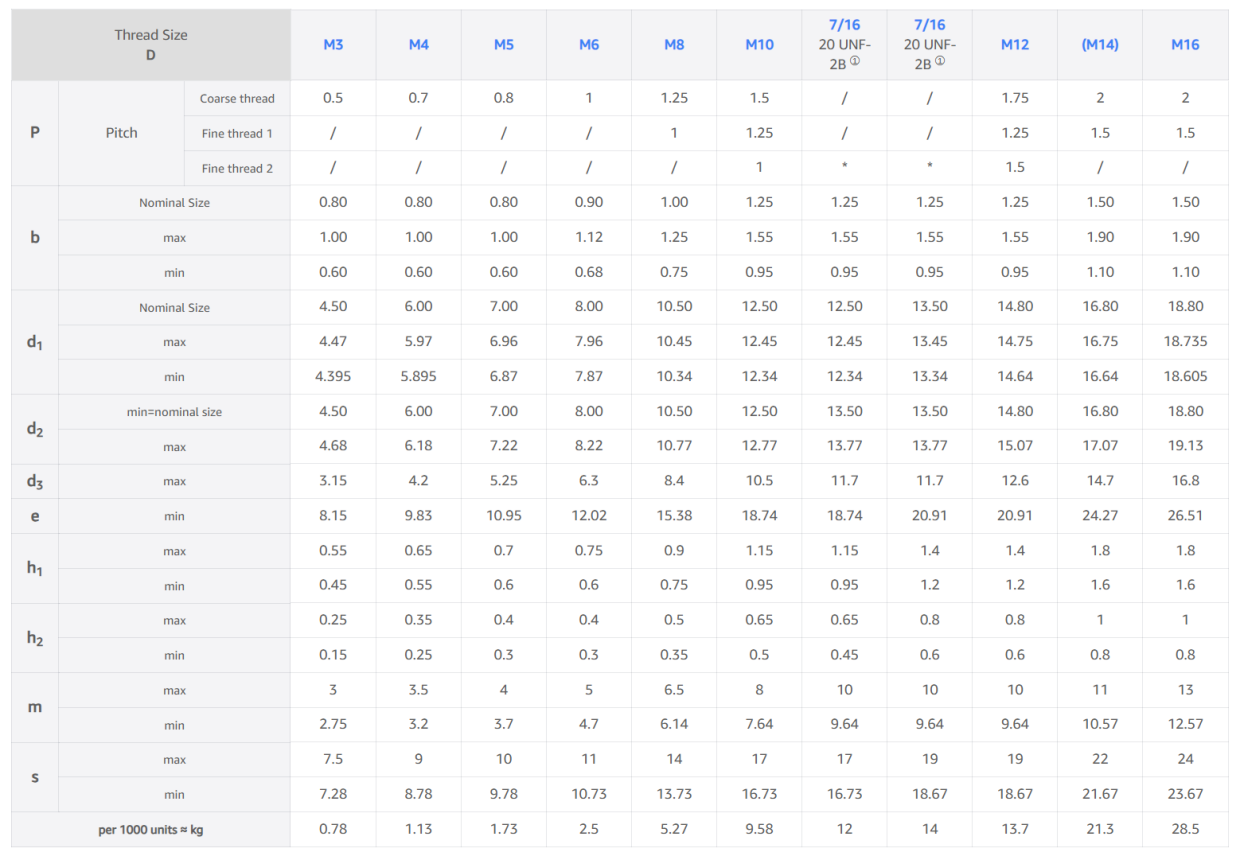

Hexagon Weld Nut Size Chart – DIN 929  Metric Dimensions

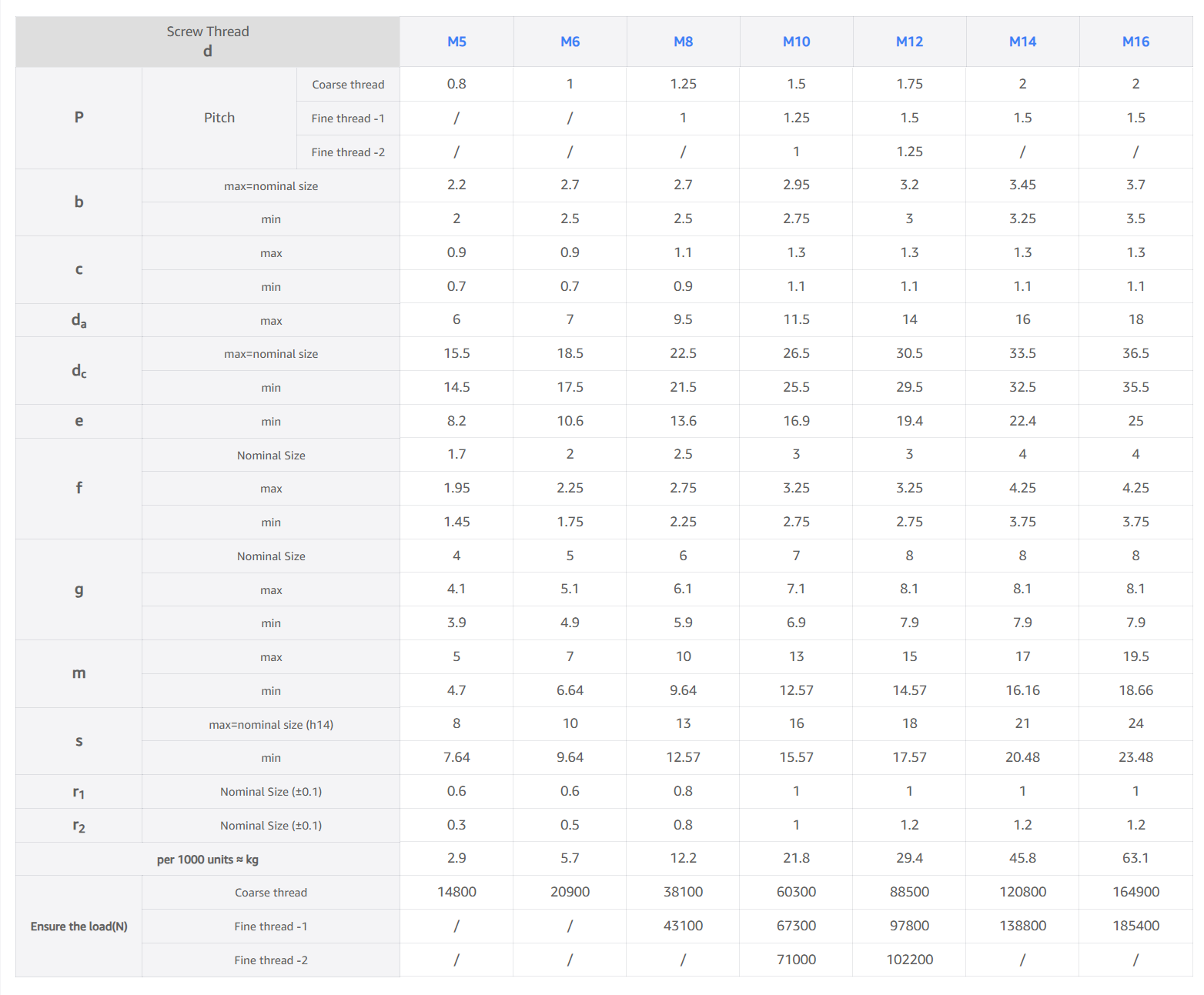

Hexagon Weld Nut With Flange Size Chart – ISO 21670  Metric Dimensions
