Hex Bolt Size Chart – ISO 4014 / 4017 & DIN 931 / 933 & ASME B18.2.1 Dimensions

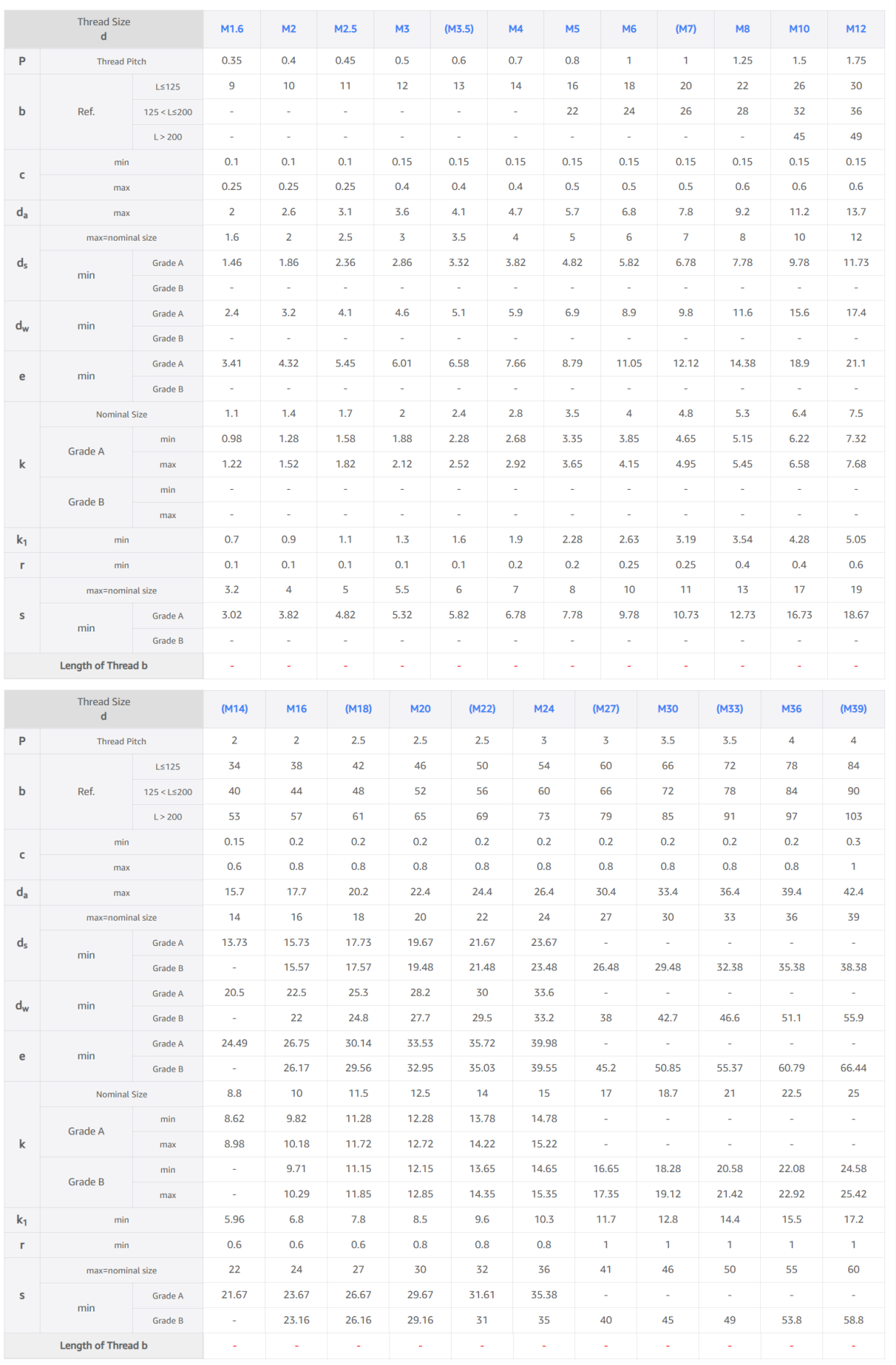

Hexagon Bolt Size Chart – ISO 4014 / DIN 931 Metric Dimensions

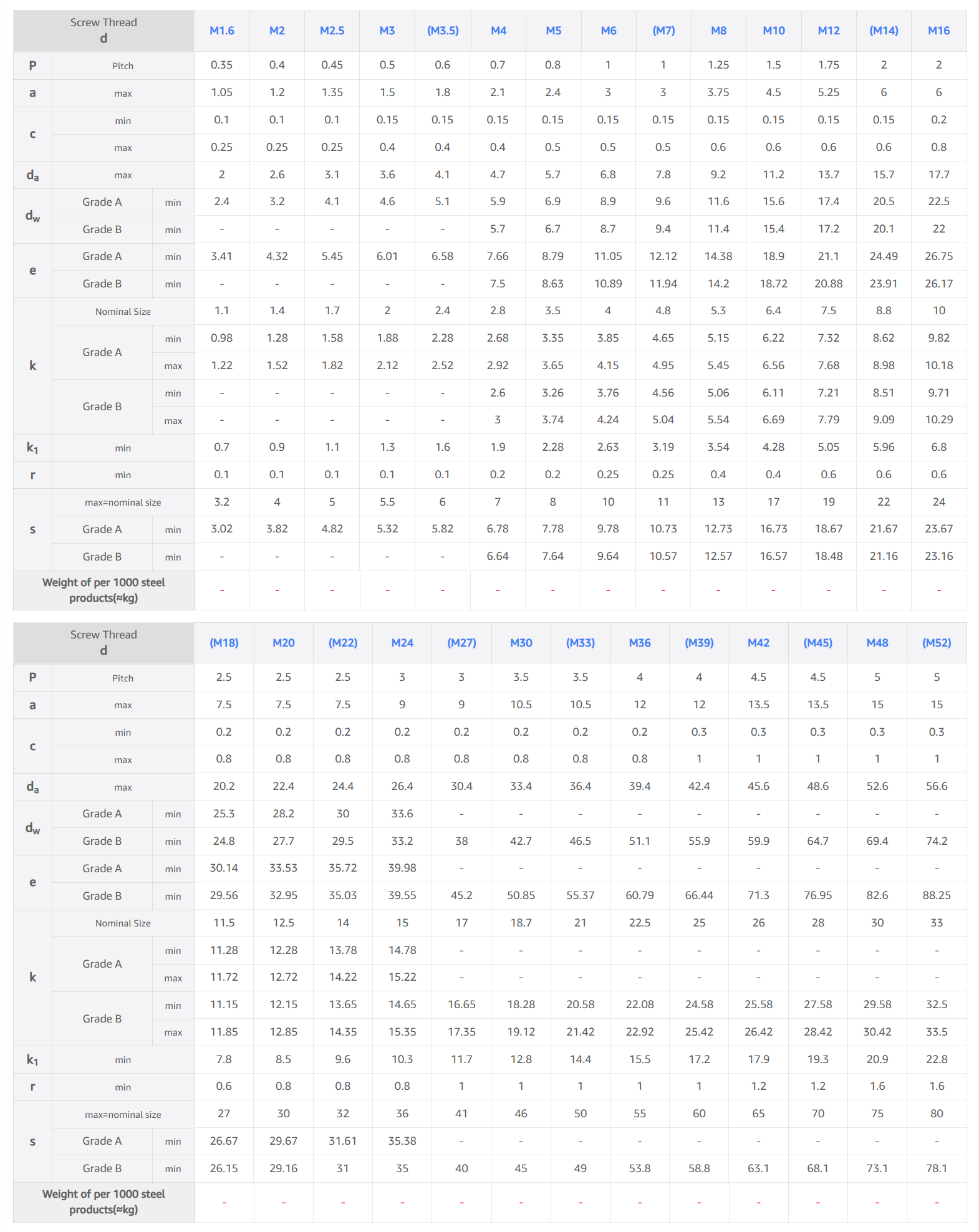

Hexagon Bolt Size Chart – ISO 4017 / DIN 933 Metric Dimensions

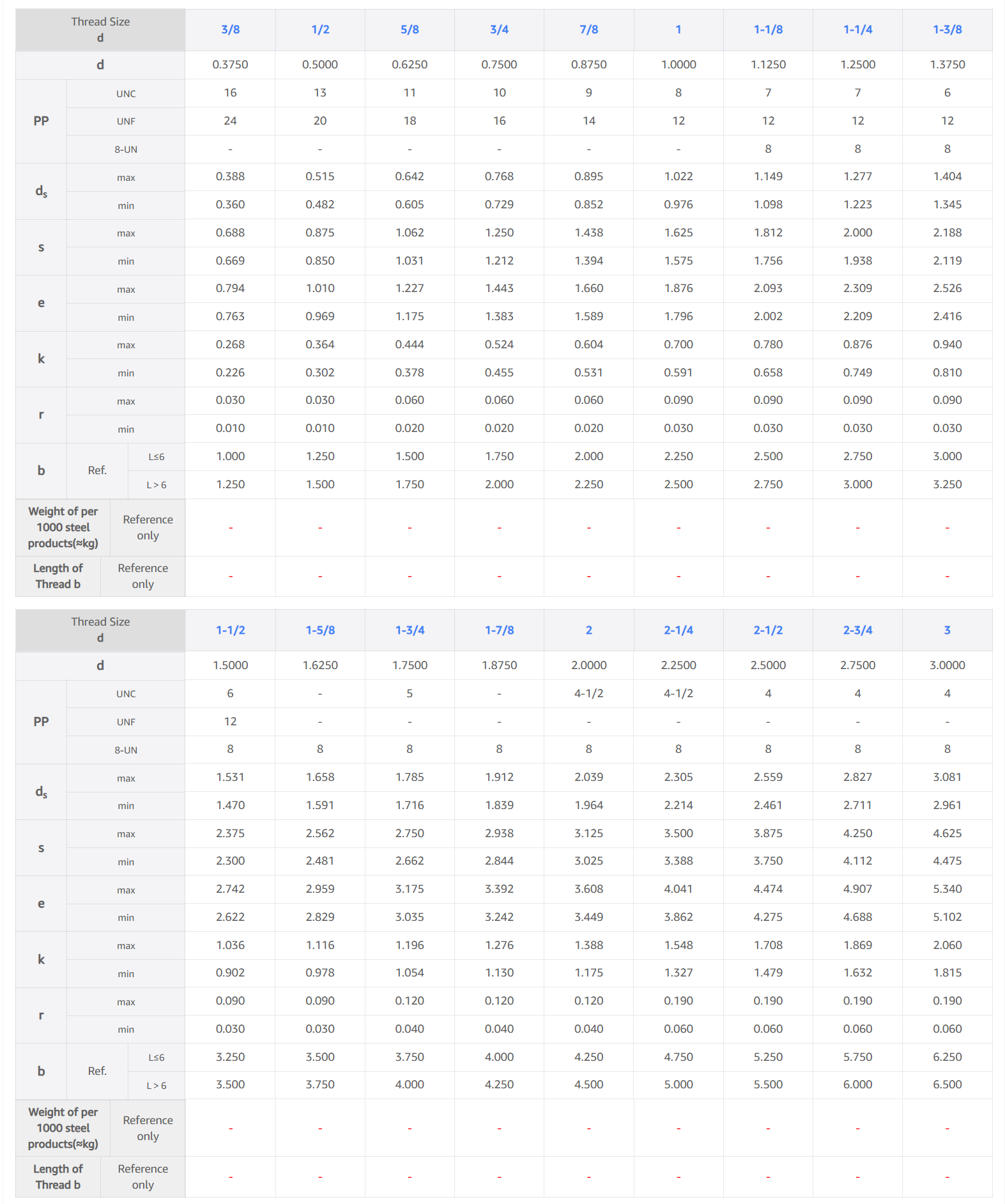

Hex Bolt Size Chart – ASME B18.2.1 Inch Dimensions
