Hex Flange Bolt Size Chart – DIN 6921 / EN 1665, ISO 4162 & ASME B18.2.1 Dimensions

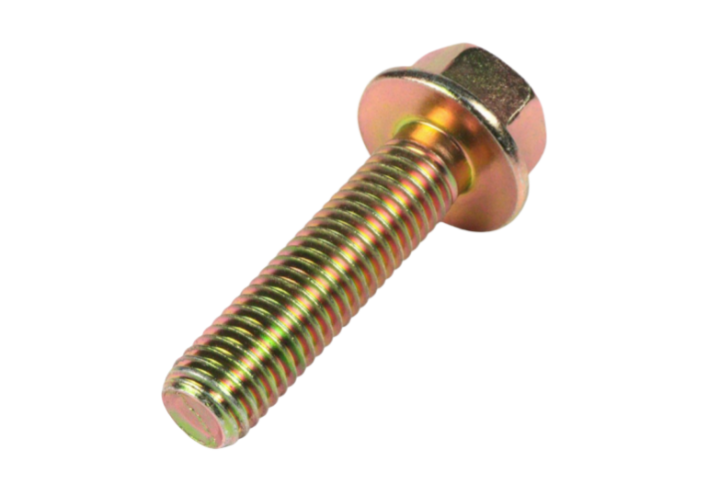

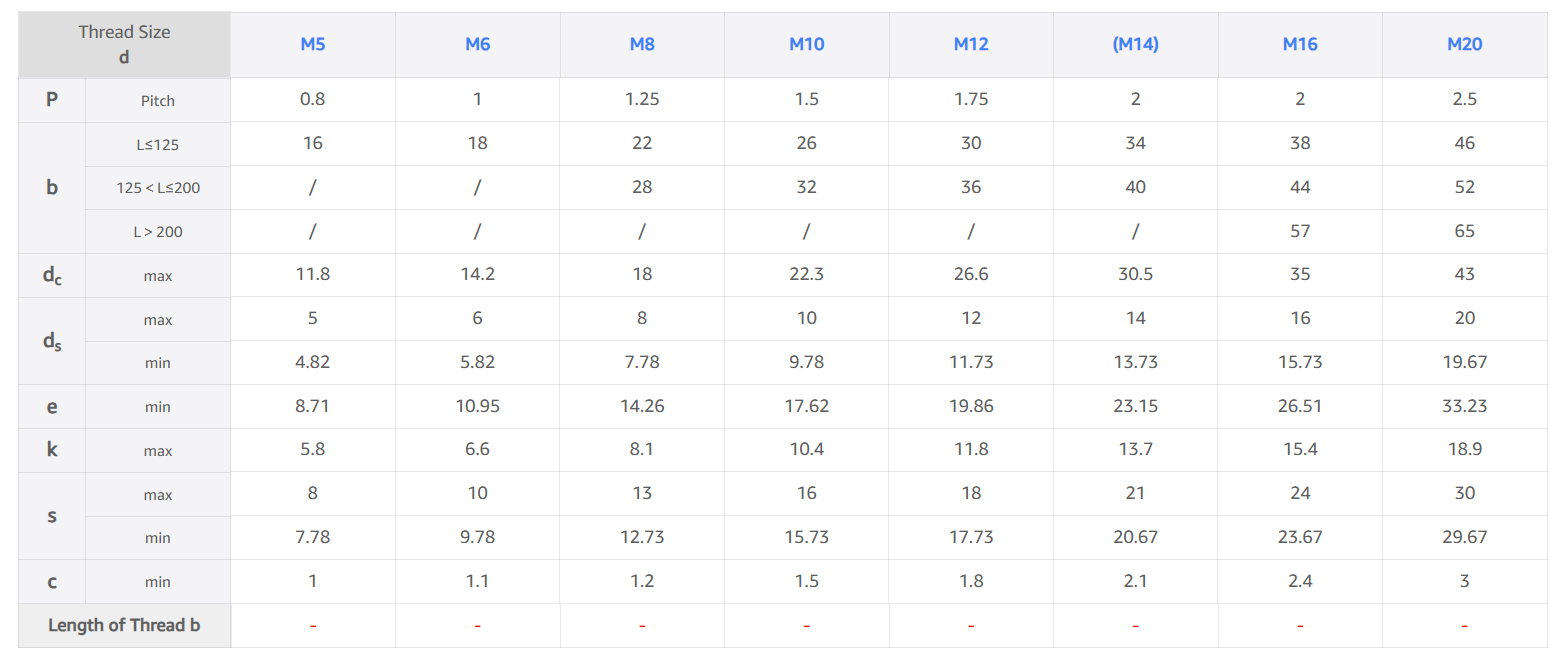

Hexagon Flange Bolt Size Chart – DIN 6921 / EN 1665 Metric Dimensions (Heavy Series, Full Shank)

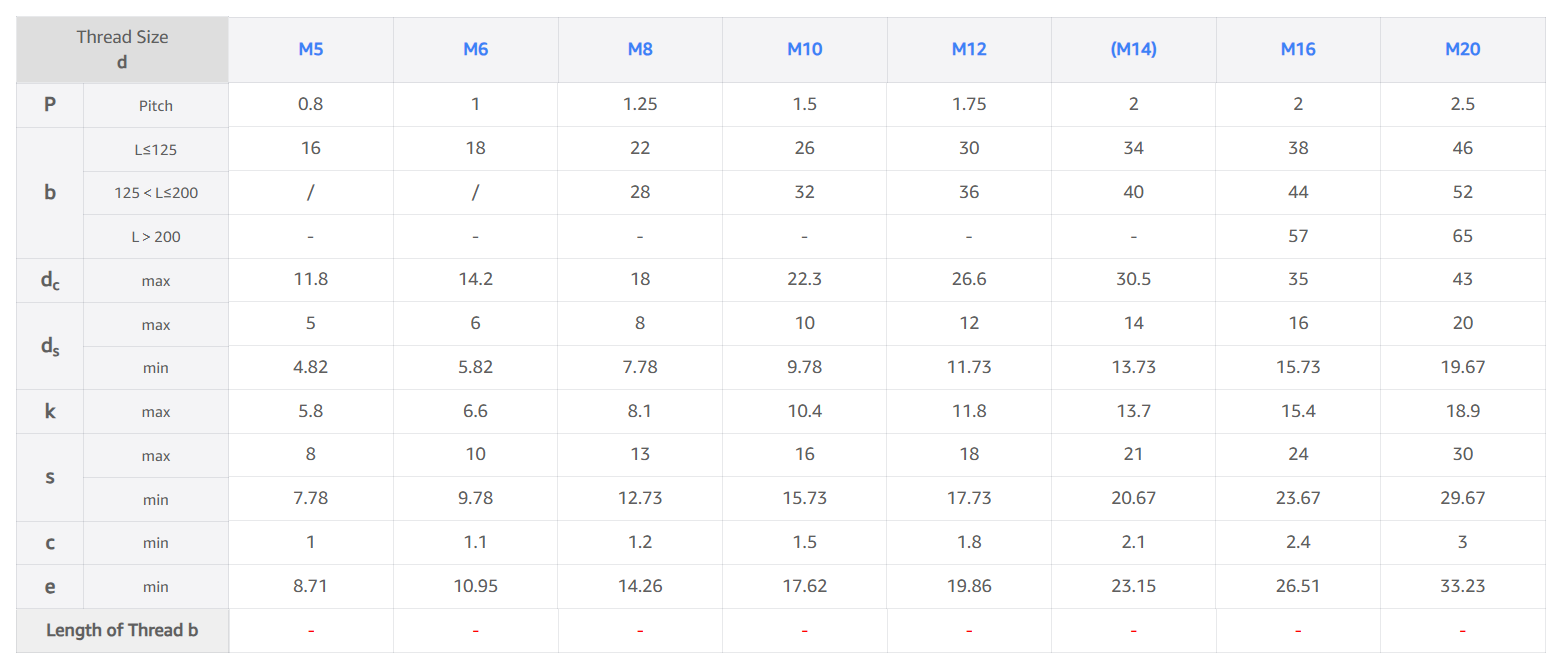

Hexagon Flange Bolt Size Chart – DIN 6921 / EN 1665 Metric Dimensions (Heavy Series, Reduced Shank)

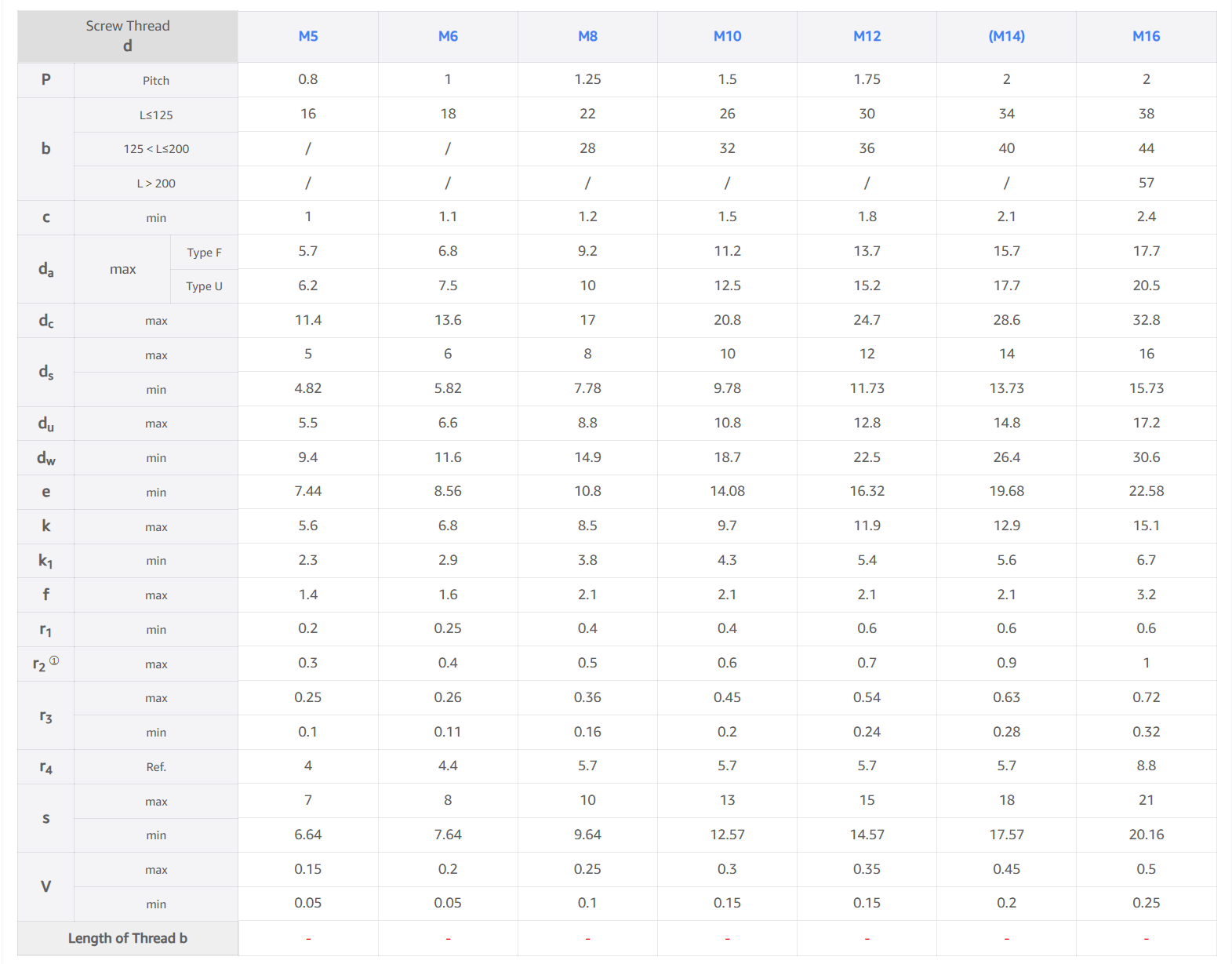

Hexagon Flange Bolt Size Chart – ISO 4162 Metric Dimensions (Small Series)

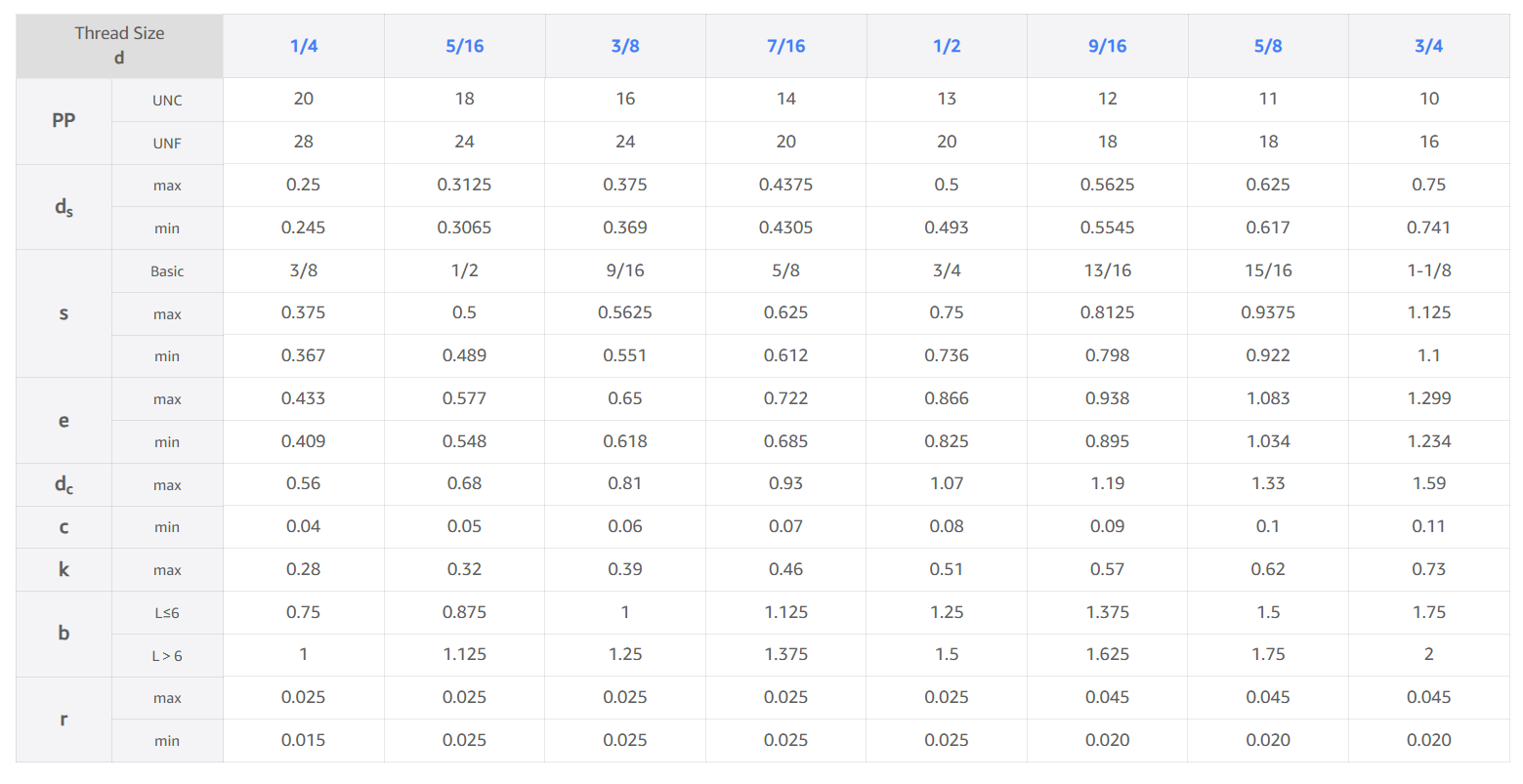

Hex Flange Screw Size Chart – ASME B18.2.1 Inch Dimensions
